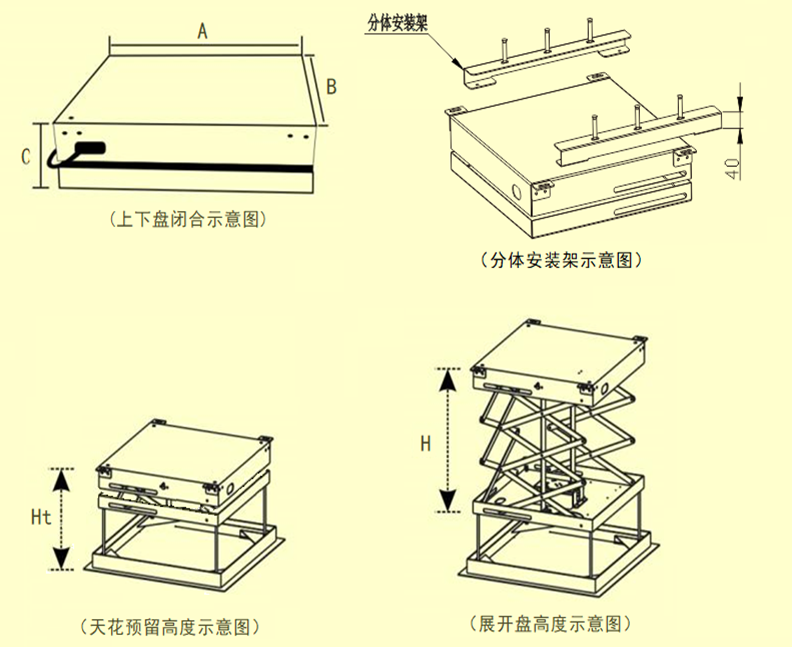

型号规格展开盘高行程净重负重吊架盘包装尺寸天花尺寸天花开孔尺寸天花开孔预留最小高度距离Ht
    (即楼板到装饰天花的距离)
天花包装尺寸
AxB(mm)C(mm)H(mm)L(mm)(kg)(kg)长x宽x高(mm)长x宽(mm)长x宽(mm)Ht = C+40+95+投影机高度(mm)(mm)
T80A450x4501458006551525575x535x265600x600550x550高度Ht =280+ 投影机高度630x630x100
T80B508x5081458006551525640x590x300600x600550x550高度Ht =280+ 投影机高度630x630x100
T100A450x45014510008551525575x535x265600x600550x550高度Ht =280+ 投影机高度630x630x100
T100B508x50814510008551525640x590x300600x600550x550高度Ht =280+ 投影机高度630x630x100
T120A450x4501701200103017.525575x535x265600x600550x550高度Ht =305+ 投影机高度630x630x100
T120B508x5081701200103017.525640x590x310600x600550x550高度Ht =305+ 投影机高度630x630x100
T150A450x450215150012851825575x535x265600x600550x550高度Ht =350+ 投影机高度630x630x100
T150B508x508215150012851825640x590x300600x600550x550高度Ht =350+ 投影机高度630x630x100
T180B508x508220180015801925640x590x300600x600550x550高度Ht =355+ 投影机高度630x630x100
S180700x508220180015802550780x640x380870x600820x550高度Ht =355+ 投影机高度895x640x100
S240700x508240240021602650780x640x380870x600820x550高度Ht =375+ 投影机高度895x640x100
S300700x5082803000272029.550780x640x380870x600820x550高度Ht =415+ 投影机高度895x640x100
S360700x508350360032803050780x640x460870x600820x550高度Ht =485+ 投影机高度895x640x100
